2014-07-24

Raw, uncensored water


Not wanted on the voyage.

How many readers were aware that below-the-waterline hoses, such as raw water supplies to engines, were supposed to be, according to the American Boat and Yacht Council, who pontificate on these sort of things, the same hose used for wet exhausts, i.e. the wire-reinforced stuff that's eight bucks a foot? And not the admittedly less durable stuff called "heater hose", "red radiator hose" and other terms of endearment related to its far lower price? Alchemy has a standpipe from which several water sources lead; I discussed the idea of standpipes last year here.

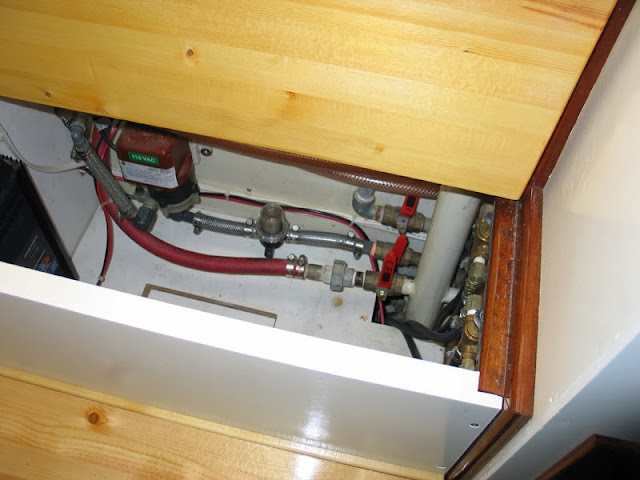

Oh, look, it's loads of hose no longer up to code.
Now, there's a limit to my willingness to hew to the ABYC party line and even my insurers don't balk when they see our old friend Mr. Cheap Heater Hose running from the seacock on my 33-footer Valiente to the 1/2-inch elbow and barb of its little inboard engine's raw water pump. But Alchemy is destined for wine-dark seas, not the bar at Dalhousie YC (although we might go there at some point again), and therefore Steps Were Taken as part of the Drive to Drive.

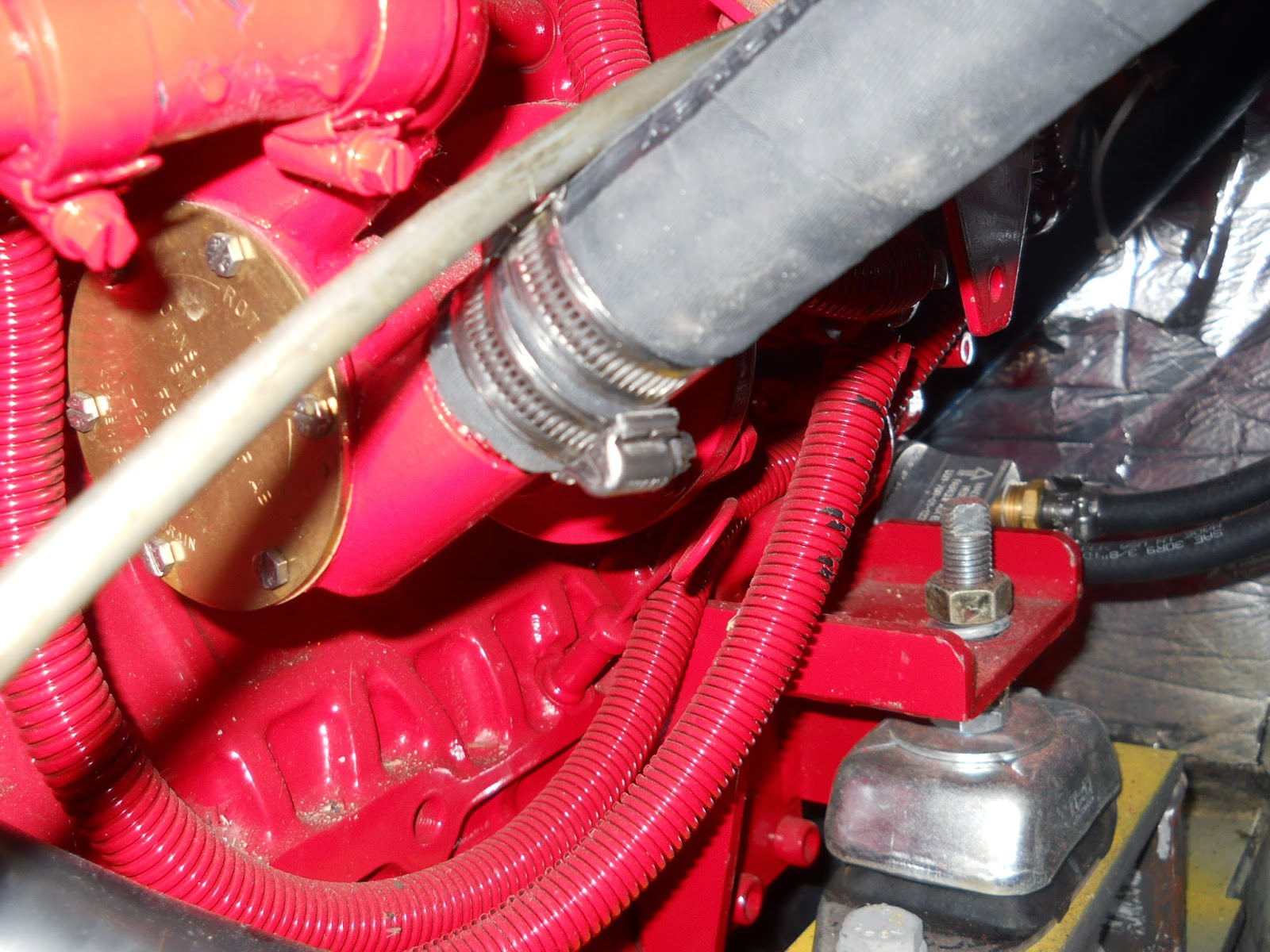

The Beta 60's raw water pump: I believe I'm going to get a Speed Seal for that. And a vacuum cleaner with a pointy end down there.
Steps taken were the usual: expensive and dilatory. Despite having a spouse who works four days a week in a well-stocked chandlery on the waterfront of a city of nearly six million people, many of whom boat, the below-pictured little bronze elbow, which cost all of $15, took a couple of weeks to show up. A T-fitting for the exhaust system (more on that later) took six weeks. I have to wonder about the current business model of the marine supply business some days.

Forgot my camera, so it's the one that came with the phone from here forward.
I needed the little bronze elbow, which was 1.25" I.D. at the Perko Seawater Strainer end and 1" at the hose barb bit, to replace the original 1.25" to 0.75" piece of  plumbing that sufficed for the former engine. The barb leading to the engine pump is 1 inch, and so this swap happened.

Sometimes you feel like pipe dope, sometimes like Teflon tape.
I have an exceedingly manly 18" crescent wrench aboard. It's even got words like "Husky" and the less salacious "chrome-vanadium" on the handle. I gave both the inlet and outlet sides of the Perko water strainer a good crank and I do not anticipate that the 3/4" inlet side will fail to stop the 1" outlet to pump side from drawing sufficient water to cool the engine, mainly because the seawater enters the boat quite low down.

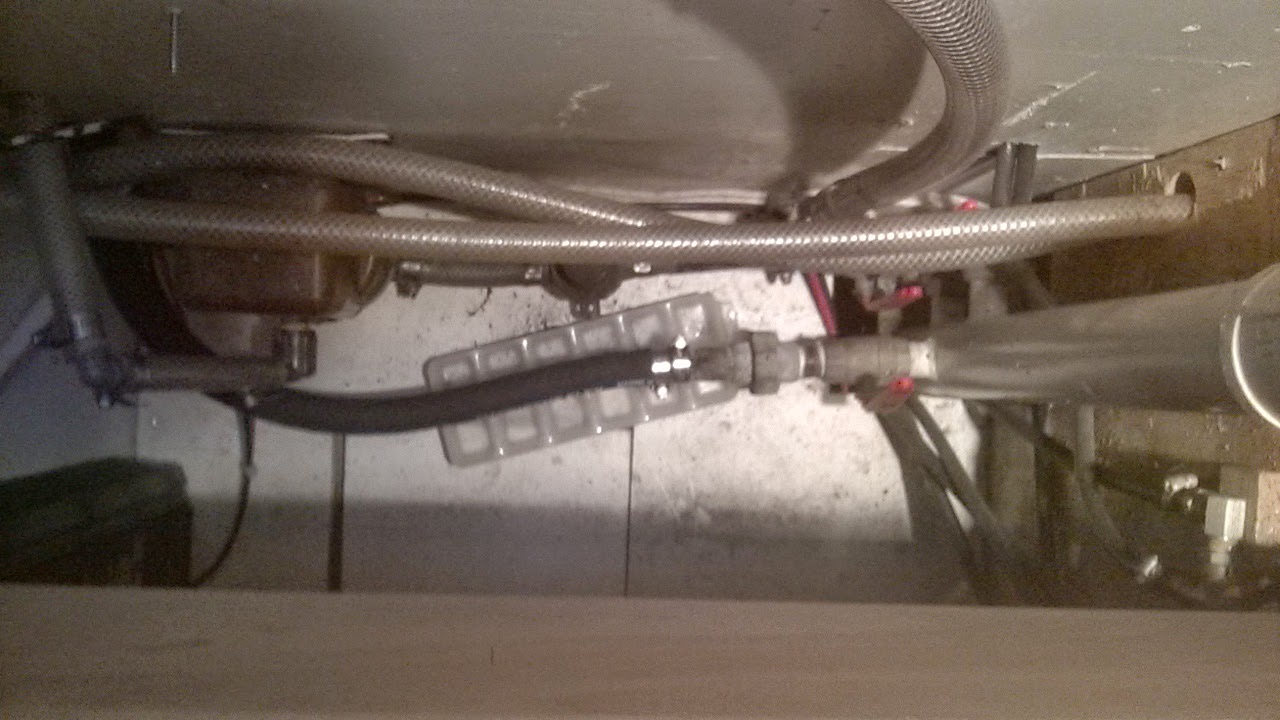

It's dim down here, but you can make out the ice cube tray I used to capture water from the old 3/4" hose, and see the new "to spec" 3/4" wet exhaust hose in its place.
I then dogged down doubled and opposing AWAB hose clamps, because they are better than Tridons for "mission critical" tasks like this and because sinking due to a failed clamp can ruin one's sundowner. It's the old "for want of a decent hose clamp" argument, to which I would be underexposed had two boats not sunk at dock at my club over the last few years due to inattention in this area.


Just add water
Next up is the connection of the control cables. Things have, ever so slightly, picked up speed. The weather is not too hot, either, meaning I can work longer stretches without feeling like I might keel over with heat stroke. Or the less happy plain old stroke.

The little, just-visible arrow is to show "dead center bottom" for the flap that is supposed to keep waves from backing down the bilge hose.
Above is the "skin fitting", a plastic through-hull bit of plumbing that will reroute the bilge hose from its current outlet on the port side second chine to the first chine, and slightly aft. This will be accompanied by the addition of a vented loop in the bilge hose line that should keep the water that needs to be out, out, and the water that is out won't get in. The reason for drilling a fresh hole in the boat is to utilize the existing bilge pump exit, which has a massive ballcock on it and which I suspect was intended originally for the use to which I wish to put it: as one side of the transverse exhaust I wish to have. I have to fashion a Delrin or similar HDPE plastic ring to act as a spacer, as that Seadog product cannot be tightened down to snug against my boat's "thinner than fibreglass" hull plating.
